TRI-STAND: Efficient mounting system for photovoltaic systems - quick and easy installation on trapezoidal sheet metal roofs

With the TRI-STAND insertion system, you can install PV quickly and easily on trapezoidal sheet metal roofs. The closed module field without clamping distances ensures maximum aesthetics.

Trapezoidal sheet 4

Photovoltaic mounting on roofs with trapezoidal sheet metal

Our experienced team has developed the innovative PV insertion system TRI-STAND especially for the installation of solar systems on trapezoidal sheet metal roofs. Thanks to a reduced number of components and user-friendly installation, this system enables an installation speed that is up to 50 % faster than conventional short rail systems, which offers a significant time advantage, especially when installing on commercial roofs.

The riveted SafeClick system ensures a secure and permanent hold for solar installations, making it the ideal solution for PV mounting on trapezoidal sheet metal roofs. The TRI-STAND special SafeClicks are supplied pre-assembled and can be attached directly to the raised beads of the trapezoidal sheet metal using the appropriate rivets. To make preparation easier, we offer a special drilling jig. After riveting the SafeClicks, the TRI-STAND insert profile can be inserted quickly and easily without the need for additional screwing or drilling. Our insert profiles can be efficiently connected with the corresponding connecting pieces TRI-STAND TS-C, which are simply slid on and fixed with grub screws. A key advantage of the system is that the floating mounting does not require a thermal break, which prevents damage to the system and modules.

Our PV mounting systems are produced in Central Europe and comply with the international IEC 61215 standard. They are also TÜV-certified, which guarantees the highest quality, reliability and durability.

You already have a current project? You can sendus your project enquiryhere.

Trapezoidal sheet 5

The advantages of the TRI-STAND assembly system

  • Significant time saving

    The TRI-STAND assembly system is designed for simple and quick assembly. This gives you more time for further assembly and allows you to offer your customers an attractive overall price.

  • Floating

    The floating mounting on the trapezoidal roof with the help of the insertion profiles eliminates the need for thermal separation.

  • Optimum stability

    Our PV planning software TRI-DESIGN calculates the optimum material requirement of SafeClicks that you need for mounting on the trapezoidal sheet. In this way, you achieve optimum load distribution on the roof for all common solar modules.

Photovoltaic installation on a trapezoidal sheet metal roof

The PV insertion system TRI-STAND enables the use of all types of modules from different manufacturers. As the name suggests, the solar modules can be conveniently inserted and are thus stored in a floating manner. This has the advantage that no damage occurs even if the solar modules expand due to heat.

Trapezoidal sheet 6

1. measuring and predrilling the module field

According to the layout plan, the module field is measured on the roof and pre-drilled using the TRITEC drilling jig.

Trapezoidal sheet 7

2. riveting the SafeClick onto the trapezoidal sheet metal

The tried-and-tested SafeClick is riveted directly onto the trapezoidal sheet, which means that significantly fewer fastening points are required.

Trapezoidal sheet 8

3. clicking the TS insert profiles into the SafeClick

The insertion profiles are clicked into the SafeClick - they are thus connected to the roof in a floating manner. Damage to the roof and module caused by thermal expansion is thus avoided.

Trapezoidal sheet 9

4. inserting the modules into the TS insertion profiles

The PV modules are inserted into the profiles in a time-saving manner; there is no need for additional fastening of the modules.

Mounting video TRI-STAND for trapezoidal sheet

Get an impression of the simple installation and the few components of the TRI-STAND PV insert system.

YouTube

By loading the video, you agree to YouTube's privacy policy.
Learn more

Load video

YouTube

By loading the video, you agree to YouTube's privacy policy.
Learn more

Load video

References

The following are references for the installation of solar systems on roofs with trapezoidal sheet metal roofing.

Mounting system components for a trapezoidal sheet metal roof

The PV-insertion system TRI-STAND is the perfect basis for a quick, safe and solid installation of PV-system on a trapezoidal sheet metal roof. The PV modules are inserted into the aluminium profile and held in place by their own weight and by friction. This eliminates the need to clamp the modules. The system is available in natural (aluminium silver) and black.

  • TRI-STAND Special SafeClick:

    The innovative SafeClick system allows the TRI-STAND insert profiles to be fixed effortlessly and quickly to the high beads of the trapezoidal sheet metal. The special SafeClicks are pre-assembled and riveted directly onto the sheet metal. To avoid complications when drilling the holes, we offer a drilling jig.

  • TRI-STAND Inlay profile:

    Our insertion profiles are available in different sizes and heights to ensure sufficient ventilation of the PV modules. The solar modules can be easily inserted without clamps or further screws and are thus floating, which prevents damage due to thermal expansion.

  • TRI-STAND Profile connector:

    In order to connect the insert profiles effortlessly and securely with each other, we offer appropriate accessories with the TRI-STAND TS-C insert profile connector. Slide the connectors onto the insert profiles and then secure them with grub screws.

  • TRI-STAND End angle TS-E:

    The TS-E end brackets are used to secure the solar modules at the end of the insertion profiles and prevent them from slipping.

  • TRI-STAND Edge Clip - cable fixation:

    Good cable management ensures long-lasting and safe operation of the photovoltaic system - with our Edge Clips, we supply the appropriate accessories for exemplary cable management.

TRI-STAND-Products for photovoltaic mounting on a trapezoidal sheet metal roof

System components: Standard

Trapezoidal sheet 10

TRI-STAND Insertion profile, blank

  • Variants: TS-30/32/35/38/40
  • Available in different lengths
Trapezoidal sheet 11

TRI-STAND Insert profile, black

  • Variants: TS-30/32/35/38/40
  • Available in different lengths
Trapezoidal sheet 12

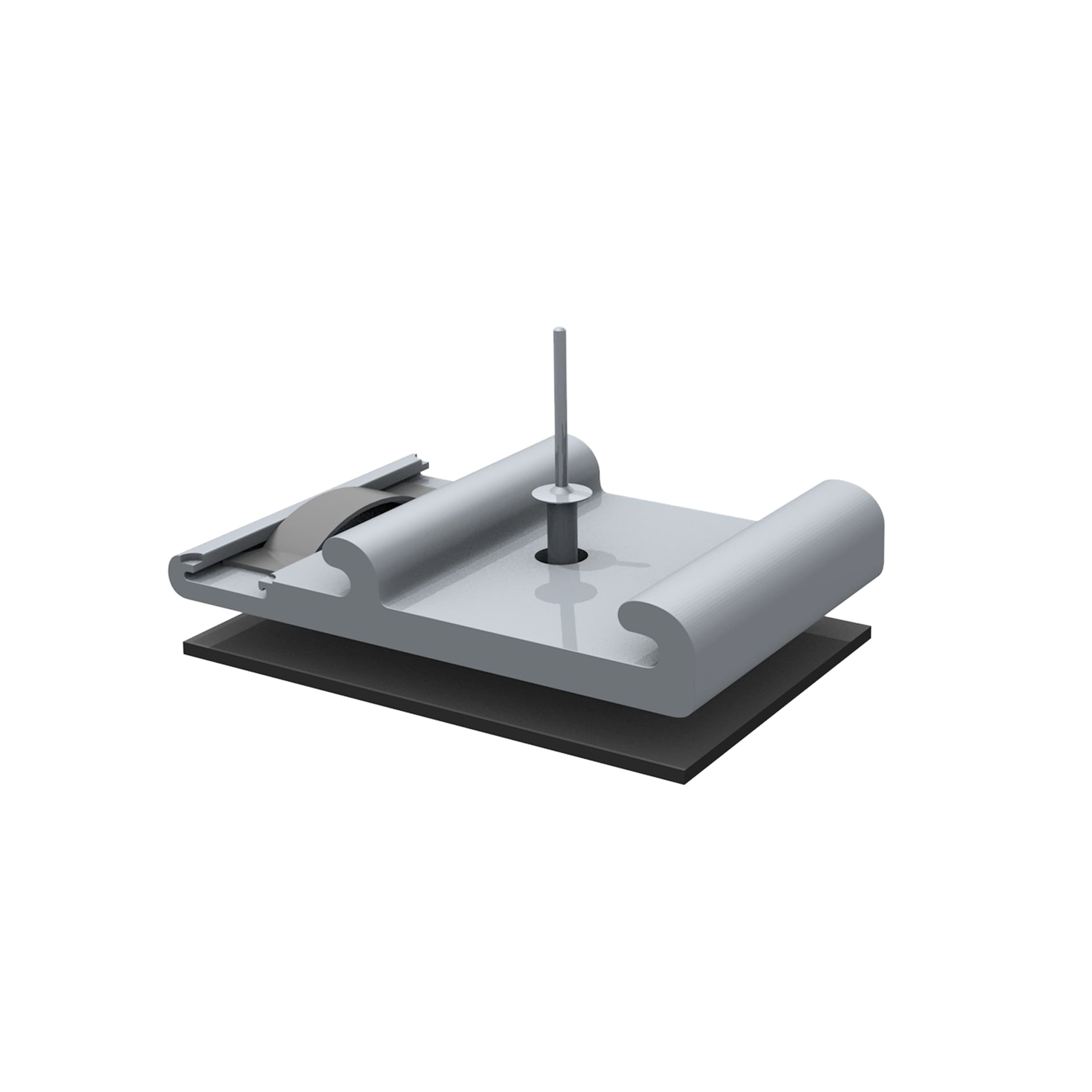

TRI-STAND Special SafeClick, blank

  • pre-assembled incl. rivet & gasket
  • Item No.: 1502987
Trapezoidal sheet 13

TRI-STAND Special SafeClick, black

  • pre-assembled incl. rivet & gasket
  • Item No.: 1503075
Trapezoidal sheet 14

TRI-STAND Insert profile connector TS-C, blank

  • Item No.: 1502216
Trapezoidal sheet 15

TRI-STAND TS-C insert profile connector, black

  • Item No.: 1502417
Trapezoidal sheet 16

TRI-STAND End bracket TS-E, blank

  • Item No.: 1502214
Trapezoidal sheet 17

TRI-STAND End bracket TS-E, black

  • Item No.: 1502307

System components: Optional

Trapezoidal sheet 18

TRI-STAND End profile, blank

  • Variants: TS-30/32/35/40
  • Available in different lengths
Trapezoidal sheet 19

TRI-STAND End profile, black

  • Variants: TS-30/32/35/40
  • Available in different lengths
Trapezoidal sheet 20

TRI-STAND Inlay profile Opti, blank

  • Variants: TS-30/35/40
  • Available in different lengths
Trapezoidal sheet 21

TRI-STAND Inlay profile Opti, black

  • Variants: TS-30/35/40
  • Available in different lengths

System components: Accessories

Trapezoidal sheet 22

TRI-STAND Edge Clip Cable Fixation

  • Item No.: 1502246

Downloads

All information about the TRI-STAND mounting system for download as PDF.

  • TRI-STAND Insertion system for trapezoidal sheet - data sheet

    → download PDF English | German

  • TRI-STAND Insertion system for trapezoidal sheet - installation instructions

    → download PDF English | German

  • TRI-STAND Guarantee certificate

    → download PDF English | German

  • TRI-STAND TÜV certificate

    → download PDF English | German
