TRI-STAND: Efficient mounting system for photovoltaic systems - quick and easy installation on corrugated eternit roofs

With the TRI-STAND insertion system, you can install PV quickly and easily on corrugated fiber cement roofs. The closed module field without clamping distances ensures maximum aesthetics.

Waveternite 1

Photovoltaic mounting on roofs with corrugated fiber cement

The TRI-STAND PV insertion system for corrugated roofs is an advanced solution for the professional installation of photovoltaic systems. Thanks to a reduced number of components and user-friendly installation, this system enables an installation speed that is significantly faster than conventional solutions, which offers a significant time advantage, especially when installing on commercial roofs.

Instead of conventional hanger bolts, we rely on the TRI-STAND TS-COR mounting brackets, which provide a robust and reliable foundation for PV installation on corrugated fiber cement roofs. A decisive advantage of the TRI-STAND TS-COR mounting bracket is the simple and time-saving attachment to existing roof screws. The TS-COR is effortlessly fixed to the existing screw, which enables significantly faster installation compared to traditional hanger bolts. The reduced number of components for upright or transverse mounting further simplifies the installation process. A key advantage of the system is that the floating mounting does not require a thermal break, which prevents damage to the system and modules.

Our PV mounting systems are produced in Central Europe and comply with the international IEC 61215 standard. They are also TÜV-certified, which guarantees the highest quality, reliability and durability.

You already have a current project? You can sendus your project enquiryhere.

Waveternite 2

The advantages of the TRI-STAND assembly system

  • Significant time saving

    The TRI-STAND assembly system is designed for simple and quick assembly. This gives you more time for further assembly and allows you to offer your customers an attractive overall price.

  • Floating

    The floating mounting on the corrugated roof with the help of the insertion profiles eliminates the need for thermal separation.

  • Optimum stability

    Our PV-planning software TRI-DESIGN calculates the optimal material requirement of mounting brackets that you need for mounting on the corrugated roof. In this way, you achieve optimum load distribution on the roof for all common solar modules.

Photovoltaic mounting on corrugated fiber cement

The PV-insertion system TRI-STAND offers maximum flexibility, because it allows the use of all common framed solar modules. The on-roof system is floating, thus no stress or damage can occur to the module or the rail system due to thermal expansion.

Waveternite 3

1. mounting the TS-COR

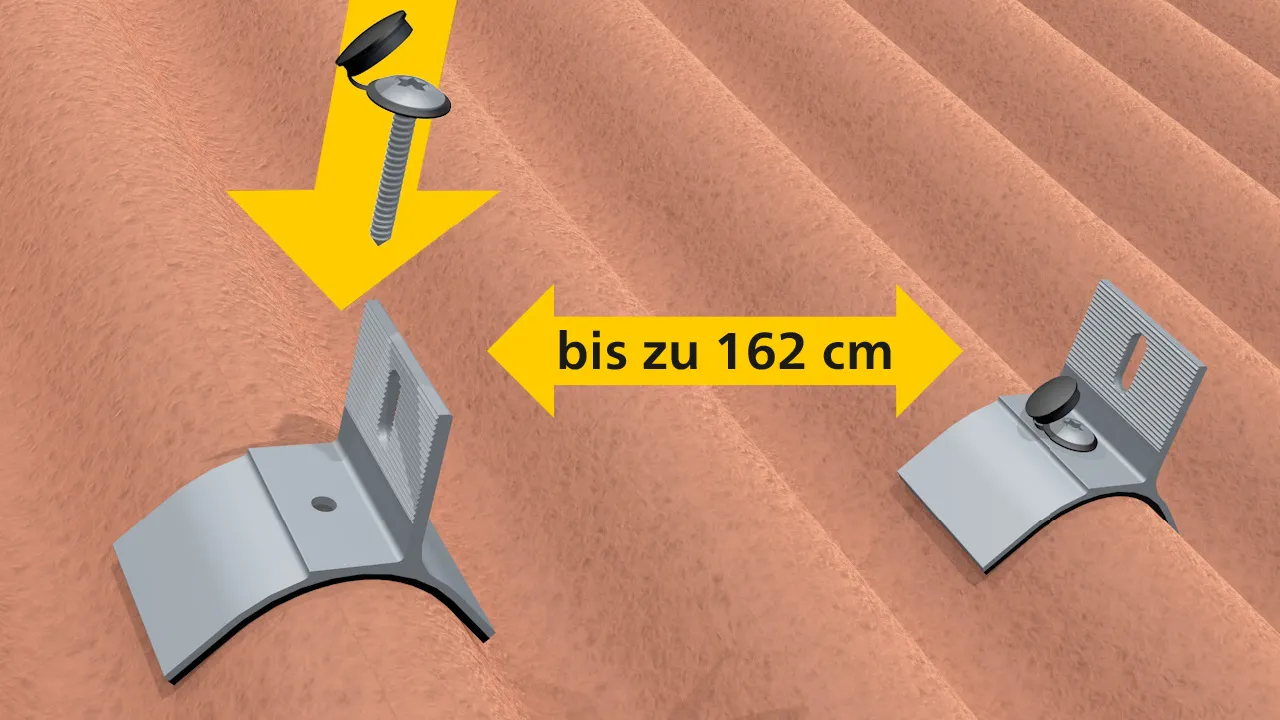

First, the TS-CORs are mounted at the positions provided in the layout plan using the existing roof bolts. New roof screws may have to be placed at additional positions.

Waveternite 4

2. mounting the base profile (UP-X)

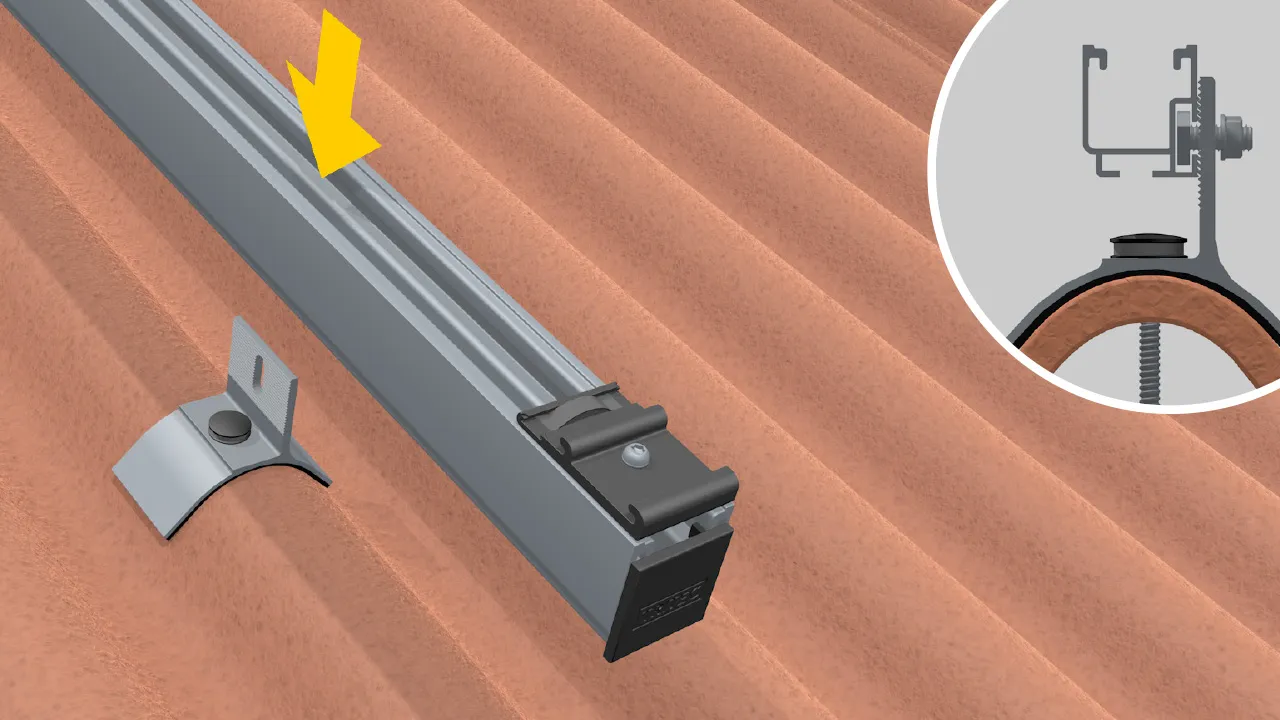

The pre-assembled profiles are then securely installed on the TS-COR using the M10 hammerhead screw.

Waveternite 5

3. clicking the TS insert profiles into the SafeClick

The insertion profiles are clicked into the SafeClick - they are thus connected to the roof in a floating manner. Damage to the roof and module caused by thermal expansion is thus avoided.

Corrugated sternite 6

4. inserting the modules into the TS insertion profiles

The modules are inserted into the insertion profiles to save time and are held in place thanks to their own weight - there is no need for additional fastening.

Installation video TRI-STAND for corrugated fiber cement

Get an impression of the simple installation and the few components of the TRI-STAND PV insert system.

YouTube

By loading the video, you agree to YouTube's privacy policy.
Learn more

Load video

YouTube

By loading the video, you agree to YouTube's privacy policy.
Learn more

Load video

Mounting system components for a corrugated fiber cement roof

The PV-insertion system TRI-STAND is the perfect basis for a quick, safe and solid installation of PV-system on a corrugated fiber cement roof. The PV modules are inserted into the aluminum profile and held in place by their own weight and by friction. Therefore, there is no need to clamp the modules. The system is available in natural (aluminum silver) and black color.

Corrugated sternite 7
  • TRI-STAND TS-COR, mounting bracket for corrugated fiber cement roof

    The foundation for installing your PV system on a corrugated fiber cement roof. The mounting brackets are screwed onto the corrugated fiber cement roofing and ensure a secure hold of the superstructure.

  • TRI-STAND Inlay profile:

    Our insertion profiles are available in different sizes and heights to ensure sufficient ventilation of the PV modules. The solar modules can be easily inserted without clamps or further screws and are thus floating, which prevents damage due to thermal expansion.

  • TRI-STAND Profile connector:

    In order to connect the insert profiles effortlessly and securely with each other, we offer appropriate accessories with the TRI-STAND TS-C insert profile connector. Slide the connectors onto the insert profiles and then secure them with grub screws.

  • TRI-STAND SafeClick-Torx:

    The innovative SafeClick system allows the TRI-STAND insert profiles to be fixed to the universal profiles effortlessly and quickly. The SafeClick elements are screwed onto the universal profiles at the specified distance, onto which the insert profiles are clicked without further screwing.

  • TRI-STAND End angle:

    The TS-E end brackets are used to secure the solar modules at the end of the insertion profiles and prevent them from slipping.

  • TRI-STAND Edge Clip cable fixation:

    Good cable management ensures long-lasting and safe operation of the photovoltaic system - with our Edge Clips, we supply the appropriate accessories for exemplary cable management.

TRI-STAND-Products for photovoltaic mounting on a corrugated fiber cement roof

System components: Standard

Corrugated sternite 8

TRI-STAND Insertion profile, blank

  • Variants: TS-30/32/35/38/40
  • Available in different lengths
Corrugated sternite 9

TRI-STAND Insert profile, black

  • Variants: TS-30/32/35/38/40
  • Available in different lengths
Corrugated sternite 10

TRI-STAND TS-COR, mounting bracket for corrugated fiber cement roof

  • Item No.: 1503073
Waveternite 11

TRI-STAND Universal profile UP-X 3,70 m

  • Item No.: 1503352
  • other lengths on request
Corrugated sternite 12

TRI-STAND SafeClick Torx, blank

  • Item No.: 1502870
Corrugated sternite 13

TRI-STAND SafeClick-Torx, black

  • Item No.: 1502963
Corrugated sternite 14

TRI-STAND Insert profile connector TS-C, blank

  • Item No.: 1502216
Corrugated sternite 15

TRI-STAND TS-C insert profile connector, black

  • Item No.: 1502417
Corrugated sternite 16

TRI-STAND End bracket TS-E, blank

  • Item No.: 1502214
Corrugated sternite 17

TRI-STAND End bracket TS-E, black

  • Item No.: 1502307
Corrugated sternite 18

TRI-STAND Universal profile connector UP-CX

  • pre-assembled incl. hammerhead screws
  • Item No.: 1502220

System components: Optional

Corrugated sternite 19

TRI-STAND End profile, blank

  • Variants: TS-30/32/35/40
  • Available in different lengths
Corrugated sternite 20

TRI-STAND End profile, black

  • Variants: TS-30/32/35/40
  • Available in different lengths

System components: Accessories

Corrugated sternite 21

TRI-STAND Edge Clip Cable Fixation

  • Item No.: 1502246
Corrugated sternite 22

TRI-STAND End cap for UP-X profile, black

  • Item No.: 1503185
Corrugated sternite 23

TRI-STAND Hammerhead bolt M10x30 A2, with locking nut

  • Screw, article no.: 1502255
  • Nut, Item No.: 1502254

Downloads

All information about the TRI-STAND mounting system for download as PDF.

  • TRI-STAND Insertion system for corrugated fiber cement - data sheet

    → download PDF English | German

  • TRI-STAND Insertion system for corrugated fiber cement - installation instructions

    → download PDF English | German

  • TRI-STAND Guarantee certificate

    → download PDF English | German

  • TRI-STAND TÜV certificate

    → download PDF English | German
